注意，这个文件必须以UTF-8无BOM格式编码。

这里描述如何使用Kubeadm安装Kubernetes的nodes端

注意k8s的版本，不是所有的版本都适合这种安装方式。安装KubeAdm的时候需要访问google，需要使用一个http/https代理。

一、安装docker

注意，docker有多个版本，最新的docker分为docker-ce和docker-ee版本。这里安装的是1.12.6版本的，使用yum直接安装

sudo yum install -y docker
sudo systemctl enable docker
sudo systemctl start docker

运行docker version确认版本

[jigsaw@kube-master ~]$ docker version
Client:
 Version:         1.12.6
 API version:     1.24
 Package version: docker-1.12.6-61.git85d7426.el7.centos.x86_64
 Go version:      go1.8.3
 Git commit:      85d7426/1.12.6
 Built:           Tue Oct 24 15:40:21 2017
 OS/Arch:         linux/amd64

Server:
 Version:         1.12.6
 API version:     1.24
 Package version: docker-1.12.6-61.git85d7426.el7.centos.x86_64
 Go version:      go1.8.3
 Git commit:      85d7426/1.12.6
 Built:           Tue Oct 24 15:40:21 2017
 OS/Arch:         linux/amd64

二、修改docker源

docker默认使用docker.io的源，国内访问慢，容易出错。修改为国内的源：

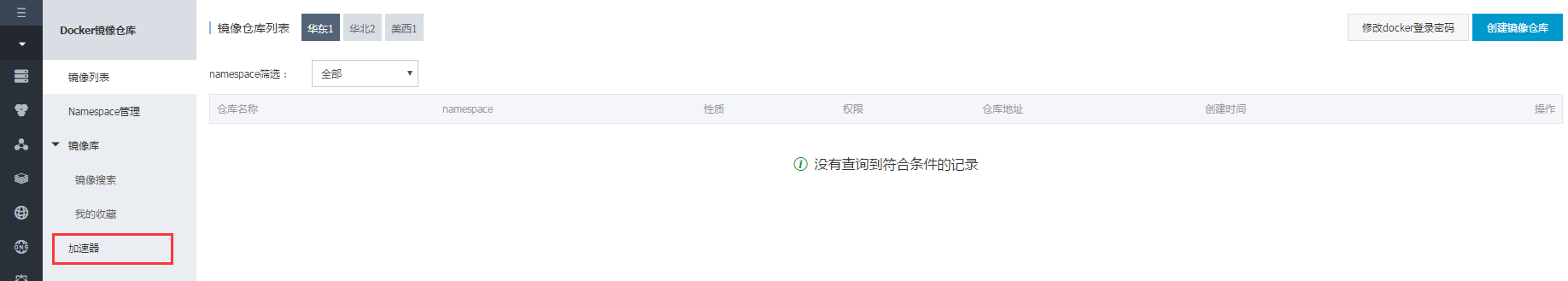

访问阿里云的开发者平台,登录后，进入管理中心，首次登录会让用户设置密码。然后就会看到如下页面： aliyun 阿里云为每个人分配一个加速器地址。我的地址是 https://n76bgciz.mirror.aliyuncs.com 修改 /etc/docker/daemon.json

sudo mkdir -p /etc/docker
sudo tee /etc/docker/daemon.json <<-'EOF'
{
  "registry-mirrors": ["https://n76bgciz.mirror.aliyuncs.com"]
}
EOF
sudo systemctl daemon-reload
sudo systemctl restart docker

三、配置yum源

vim /etc/yum.repos.d/kubernetes.repo

[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=0

四、修改防火墙

sudo setenforce 0
sudo systemctl disable iptables-services firewalld
sudo systemctl stop iptables-services firewalld

注意，修改后，需要重启系统，以让设置生效。修改 /etc/sysctl.conf 文件，添加内容

net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1

执行如下内容让其生效

sudo modprobe br_netfilter
sudo sysctl -p

五、安装kubeadm

sudo yum install -y kubelet kubeadm kubectl
sudo systemctl enable kubelet
sudo systemctl start kubelet

六、下载相关镜像

非常关键，这些镜像无法从gcr.io下载，可以先从国内源下载。以下是从阿里云上下载的镜像源，亲测可用。创建 docker.sh文件，内容如下，然后执行 sudo docker.sh 即可。 K8s的client端需要安装一些docker，这些docker默认从google的服务器上下载。这些服务器目前从国内无法正常访问。如果不预先下载，cni就无法正常初始化。执行：

journalctl -r -u kubelet

日志中会出现如下错误：

cni.go:189] Unable to update cni config: No networks found in /etc/cni/net.d
kubelet.go:2136] Container runtime network not ready: NetworkReady=false reason:NetworkPluginNotReady message:docke
Nov 07 12:43:22 kube23.jigsaw dockerd-current[11576]: time="2017-11-07T12:43:22.425674182+08:00" level=error msg="Attempting next endpoint for pull after error: Get https://gcr.io/v1/_ping:
helpers.go:432] Couldn't load Docker cofig. If sandbox image "gcr.io/google_containers/pause-amd64:3.0" is in a pri
remote_runtime.go:91] RunPodSandbox from runtime service failed: rpc error: code = 2 desc = unable to pull sandbox
kuberuntime_sandbox.go:54] CreatePodSandbox for pod "kube-proxy-fx6pf_kube-system(32142190-c370-11e7-b5ca-f0def1214
kuberuntime_manager.go:618] createPodSandbox for pod "kube-proxy-fx6pf_kube-system(32142190-c370-11e7-b5ca-f0def121
pod_workers.go:182] Error syncing pod 32142190-c370-11e7-b5ca-f0def12142f8 ("kube-proxy-fx6pf_kube-system(32142190-

即无法下载 gcr.io/google_containers/pause-amd64:3.0 这个镜像。以下可以预先下载镜像到本地：【TODO：如何建立本地镜像仓库？】

docker pull registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/pause-amd64:3.0
docker pull registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/k8s-dns-sidecar-amd64:1.14.4
docker pull registry.cn-qingdao.aliyuncs.com/zdd_k8s/kube-apiserver-amd64:v1.7.5
docker pull registry.cn-qingdao.aliyuncs.com/zdd_k8s/kube-controller-manager-amd64:v1.7.5
docker pull registry.cn-hangzhou.aliyuncs.com/google-containers/kube-scheduler-amd64:v1.7.5
docker pull registry.cn-qingdao.aliyuncs.com/zdd_k8s/kube-proxy-amd64:v1.7.5
docker pull registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/flannel:v0.8.0-amd64
docker pull registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/k8s-dns-kube-dns-amd64:1.14.4
docker pull registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/k8s-dns-dnsmasq-nanny-amd64:1.14.4
docker pull registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/etcd-amd64:3.0.17

docker tag registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/etcd-amd64:3.0.17  gcr.io/google_containers/etcd-amd64:3.0.17
docker tag registry.cn-qingdao.aliyuncs.com/zdd_k8s/kube-apiserver-amd64:v1.7.5 gcr.io/google_containers/kube-apiserver-amd64:v1.7.5
docker tag registry.cn-qingdao.aliyuncs.com/zdd_k8s/kube-controller-manager-amd64:v1.7.5  gcr.io/google_containers/kube-controller-manager-amd64:v1.7.5
docker tag registry.cn-hangzhou.aliyuncs.com/google-containers/kube-scheduler-amd64:v1.7.5 gcr.io/google_containers/kube-scheduler-amd64:v1.7.5
docker tag registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/k8s-dns-dnsmasq-nanny-amd64:1.14.4 gcr.io/google_containers/k8s-dns-dnsmasq-nanny-amd64:1.14.4
docker tag registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/k8s-dns-kube-dns-amd64:1.14.4 gcr.io/google_containers/k8s-dns-kube-dns-amd64:1.14.4
docker tag registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/flannel:v0.8.0-amd64 gcr.io/google_containers/flannel:v0.8.0-amd64
docker tag registry.cn-qingdao.aliyuncs.com/zdd_k8s/kube-proxy-amd64:v1.7.5 gcr.io/google_containers/kube-proxy-amd64:v1.7.5
docker tag registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/pause-amd64:3.0 gcr.io/google_containers/pause-amd64:3.0
docker tag registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/k8s-dns-sidecar-amd64:1.14.4 gcr.io/google_containers/k8s-dns-sidecar-amd64:1.14.4

docker rmi -f registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/pause-amd64:3.0
docker rmi -f registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/k8s-dns-sidecar-amd64:1.14.4
docker rmi -f registry.cn-qingdao.aliyuncs.com/zdd_k8s/kube-apiserver-amd64:v1.7.5
docker rmi -f registry.cn-qingdao.aliyuncs.com/zdd_k8s/kube-controller-manager-amd64:v1.7.5
docker rmi -f registry.cn-hangzhou.aliyuncs.com/google-containers/kube-scheduler-amd64:v1.7.5
docker rmi -f registry.cn-qingdao.aliyuncs.com/zdd_k8s/kube-proxy-amd64:v1.7.5
docker rmi -f registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/flannel:v0.8.0-amd64
docker rmi -f registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/k8s-dns-kube-dns-amd64:1.14.4
docker rmi -f registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/k8s-dns-dnsmasq-nanny-amd64:1.14.4
docker rmi -f registry.cn-hangzhou.aliyuncs.com/daniel_kubeadm/etcd-amd64:3.0.17

七、加入kubernetes网络

注意，这里的token是在master上执行kubeadm init之后的返回值。 172.16.2.24是kubernetes的master。

[jigsaw@kube23 ~]$ sudo kubeadm join --token jigsaw.paymentkubetoken 172.16.2.24:6443
[kubeadm] WARNING: kubeadm is in beta, please do not use it for production clusters.
[preflight] Running pre-flight checks
[preflight] Starting the kubelet service
[discovery] Trying to connect to API Server "172.16.2.24:6443"
[discovery] Created cluster-info discovery client, requesting info from "https://172.16.2.24:6443"
[discovery] Cluster info signature and contents are valid, will use API Server "https://172.16.2.24:6443"
[discovery] Successfully established connection with API Server "172.16.2.24:6443"
[bootstrap] Detected server version: v1.7.5
[bootstrap] The server supports the Certificates API (certificates.k8s.io/v1beta1)
[csr] Created API client to obtain unique certificate for this node, generating keys and certificate signing request
[csr] Received signed certificate from the API server, generating KubeConfig...
[kubeconfig] Wrote KubeConfig file to disk: "/etc/kubernetes/kubelet.conf"

Node join complete:
* Certificate signing request sent to master and response
  received.
* Kubelet informed of new secure connection details.

Run 'kubectl get nodes' on the master to see this machine join.

八、验证

[jigsaw@kube-master ~]$ kubectl get nodes
NAME                 STATUS    AGE       VERSION
kube-master.jigsaw   Ready     1h        v1.7.5
kube23.jigsaw        Ready     59m       v1.7.5

九、开启Accounting

通过journalctl -r -u kubelet查看日志，发现大量的错误

container_manager_linux.go:750] MemoryAccounting not enabled for pid: 27505
container_manager_linux.go:747] CPUAccounting not enabled for pid: 2750
container_manager_linux.go:750] MemoryAccounting not enabled for pid: 28012
container_manager_linux.go:747] CPUAccounting not enabled for pid: 28012

其中27505是kubelet的pid, 28012是docker的pid。需要打开这两个属性

# sudo systemctl show docker | grep Accounting
CPUAccounting=no
BlockIOAccounting=no
MemoryAccounting=no

确认没有打开，执行如下操作

#sudo systemctl set-property docker.service MemoryAccounting=yes
#sudo systemctl set-property docker.service CPUAccounting=yes

打开成功

# systemctl show docker | grep Accounting
CPUAccounting=yes
BlockIOAccounting=no
MemoryAccounting=yes

对kubelet服务同样执行：

# sudo systemctl show kubelet | grep Accounting
CPUAccounting=no
BlockIOAccounting=no
MemoryAccounting=no
